"Why does my expensive disc brake squeal? Why does the brake feel spongy?" For many road disc brake owners, these issues are common frustrations. High-end brakes are rarely the root cause—the real key lies in precision tuning. Even the best braking systems cannot deliver 100% performance without proper installation, maintenance, and component optimization.
This article is aimed at advanced riders who own or are planning to purchase a road bike with disc brakes. We will explore how precise installation, routine maintenance, and strategic upgrades can solve common problems such as squealing, disc rub, and poor brake feel, helping your brakes perform at their absolute best.
Common Problems and Ultimate Solutions
Eliminating Squealing
Causes:
Oil, grease, or dirt on the rotor or brake pads
Debris caught between the pad and rotor
Vibration-induced resonance
Solutions:
Proper rotor cleaning: Use alcohol or dedicated cleaning agents to thoroughly wipe the rotor surface, removing all contaminants.
Pad preparation: “Bed in” new pads by lightly sanding the surface and wiping with alcohol or mineral oil to remove residues.
Use anti-vibration shims: In cases of severe resonance, thin shims between the pad and caliper can significantly reduce noise.
Tip: Check your rotors and pads every 500–700 km to prevent squealing from recurring.

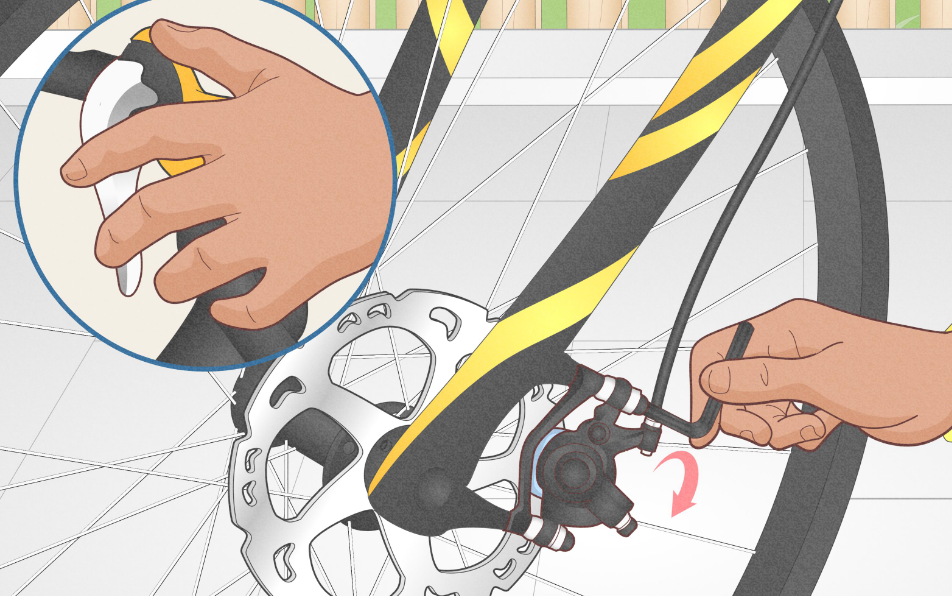

Eliminating Disc Rub
Causes:
Slightly misaligned calipers
Minor rotor warping from heat or mechanical stress
Solutions:
Visual inspection method: Spin the wheel and check the rotor-to-pad clearance for uniformity.
Shim adjustment method: Insert thin shims to fine-tune caliper positioning, eliminating rotor contact.
Heat-state recheck: After repeated braking, recheck alignment as thermal expansion can cause rub.
Tip: Minor rubbing is normal, but precise adjustment can minimize it effectively.
Optimizing Brake Feel
Causes:
Air in the hydraulic line
Incorrect or aged brake fluid
Poor hose installation
Solutions:
Brake fluid selection: Strictly follow mineral oil or DOT oil guidelines; never mix types.
Regular bleeding and fluid replacement: Recommended every six months or 3,000 km to maintain linear and responsive brake feel.
High-quality hoses and olives: Using premium compression olives and hoses improves pressure transfer and provides a more direct brake feel.
Upgrade Guide
Certain upgrades can immediately enhance braking performance:
Floating rotors: Excellent heat dissipation, keeping brakes stable on long descents.
Metal sintered pads: High friction coefficient for stronger stopping power, ideal for high-intensity riding.
Rotor surface treatment: Reduces initial pad noise and improves braking linearity.
Tip: Match upgrades to riding needs—riders with frequent long descents benefit most from high-heat-dissipation rotors and high-friction pads.
Pro Tip
Before installing a new rotor, soak it in alcohol for 5 minutes and wipe with a lint-free cloth. This ensures a completely oil-free surface, significantly reducing noise risks.
Industry Analysis Table
| Parameter | Industry Average | High-End Disc Brake Wheels | Optimization Target | Notes |
| Rotor Noise Occurrence | 65% | 15% | ≤10% | Reduce squeal via cleaning, adjustment, and shims |
| Disc Rub Incidence | 30% | 5% | ≤5% | Precise caliper adjustment and heat-state recheck |
| Brake Linearity | Medium | High | High | Bleeding, proper fluid, and optimized hoses |
| Stopping Power | Standard | Strong | Strong | Upgrade floating rotors and high-friction pads |
| Maintenance Interval | Irregular | 6 months / 3,000 km | Standardized | Regular maintenance ensures performance |
| Upgrade Convenience | Low | High | High | Modular rotors and pads for easy replacement |
FAQ
Q1: Does a squealing disc mean my brakes are broken?
A1: In most cases, no. Squealing is usually caused by improper installation or setup.

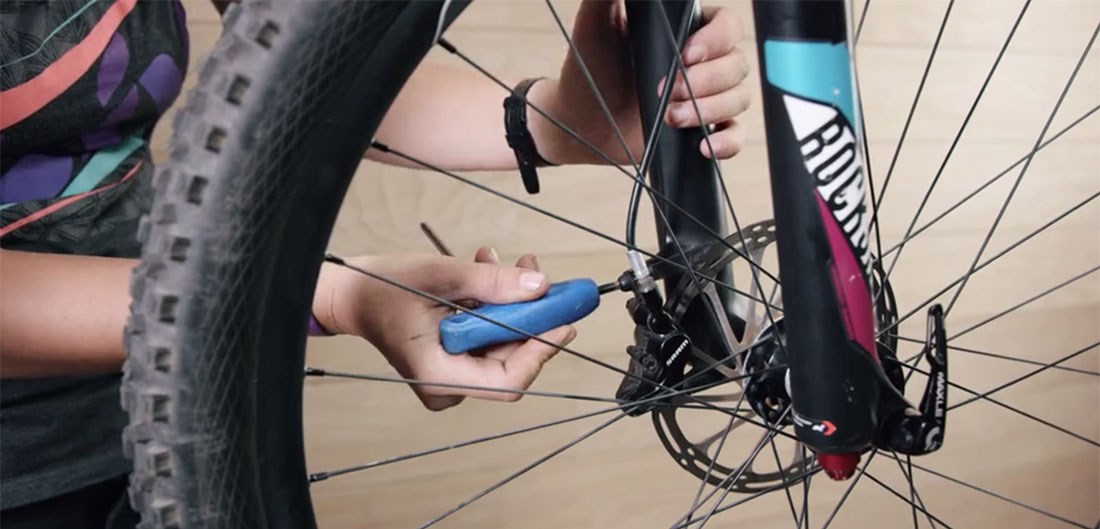

Q2: How often should I use a Hydraulic Brake Bleeding Kit?
A2: Every six months or 3,000 km to maintain an air-free hydraulic system.
Q3: Is disc rub adjustment difficult?
A3: Not at all. Using the visual inspection and shim method can achieve precise adjustment without special tools.
Q4: Are floating rotors and high-friction pads safe to upgrade?
A4: Yes, as long as they match the manufacturer’s calipers and recommended rotor size.
Q5: Do Quiet Disc Brake Pads really reduce squealing?
A5: Yes, they effectively reduce resonance and pad-to-rotor noise, especially when combined with proper cleaning and tuning.
Call to Action
To unlock the full potential of your disc brakes, we offer:
Road Disc Brake Maintenance Kit: Includes inspection tools, shims, and cleaning supplies for precise home adjustments.
Deep Disc Brake Service: Professional technicians perform complete cleaning, bleeding, caliper alignment, and upgrade recommendations to maximize braking performance.
Click to purchase the maintenance kit or book a deep service session and let your brakes perform at their absolute best.
Conclusion
Road disc brake performance depends not only on the hardware but also on proper setup, maintenance, and selective upgrades. Through correct cleaning procedures, precise caliper adjustment, hydraulic maintenance, and targeted component upgrades, riders can eliminate squealing, disc rub, and spongy feel, unlocking 100% braking performance.
Mastering disc brake tuning enhances safety, comfort, and efficiency. Whether you’re a seasoned enthusiast, a hands-on rider, or a competitive athlete, understanding and applying these techniques ensures every braking moment is smooth, precise, and reliable.
